3 Leg 4 Leg Self Supported Angular Antenna Tower Mounting Brackets For Guyed Masts

Brand Name : HL

Model Number : HL-030

Certification : SGS, CE, ISO

Place of Origin : CHINA

MOQ : 1 set

Price : USD 850-1080/Ton

Payment Terms : L/C, T/T

Supply Ability : 95,000 ton per year

Delivery Time : 28 days

Packaging Details : Seaworthy packing or as per client request

Material : Steel

Height : 0-300m

Structrue type : Single or triple

Warranty : 15 year

Surface treatment : HDG or painting

Lightning Protection : Included

Installation : Easy to install with included hardware

Lifetime : Minimum 20 years

Foundation Type : Concrete base or anchor bolts

Maintenance : Low cost

Antenna Load : As per customer`s requirement

Climbing Ladder : External

Wind Resistance : Up to 340 km/h

Character : Full tubular or angle bracing

Finish : Hot dip galvanized treatment

Weight : Cuostomized

Mounting type : Pole Mount or legs or headframe

Product name : Antenna Mounting Bracket

Compatibility : Universal for most antennas

Adjustability : 360-degree rotation and tilt adjustment

Corrosionresistance : Yes

Loadcapacity : Up to 500 kg

Weatherresistance : Waterproof and UV Resistant

Contact Now

Versatile Antenna Mounting Bracket Compatible with 3 Leg 4 Leg Self Supported Angular and Tubular Towers and Guyed Masts

3 Leg 4 Leg Self Supported Angular Antenna Tower Mounting Brackets For Guyed Masts

No.	Description	Detailed Specification and Major design Parameters
1	Design Code	ANSI/TIA222G,H or European Standard and others
2	Design Loading	1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.
4	Structure Classification	II, III
5	Hot-dip galvanization	ISO 1461 2009, ASTM A123
6	Steel Grade	1. High strength low alloy structural steel: Q355 or equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
7	Bolts and Nuts	Mainly ISO 898 grade 6.8 and 8.8 bolts
8	Foundation	50KPa, 100KPa, 150KPa etc soil bearing capacity
9	Tower Type	1. 3 or 4 Leg Self supported Angular Towers 2. 3 or 4 Leg Self supported Tubular Towers 3. Guyed Mast 4. Monopole Tower 5. Camouflaged Tower: Palm Tree, Pine Tree, Coconut 6. RDS Tower: Rapid Deploy Site/Tower 7. Rooftop Towers 8. COW 9. Street lightning pole 10. Electric transmission line towers 11. Subustation gantry 12. All kinds of other steel structures
10	Warranty	1. Tower structures: 15 years 2. Camouflaged towers a. Barks: 10 years b. Branches and leaves: 3 years
11	Return Period	50 Years
12	Accessories	1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint 2. Aviation Light: Double Light and Single Light & Solar Light 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. 5. Fencing: Palisade fence and wire mesh fence with razor wires and gate. 6. Fall arrest system: GB and CE certificate fall arrest system. 7. Canopy and Generator Cage: as per specified by clients

Product Tags:

guyed masts antenna tower bracket

guyed masts antenna tower mounting brackets

ce antenna tower bracket

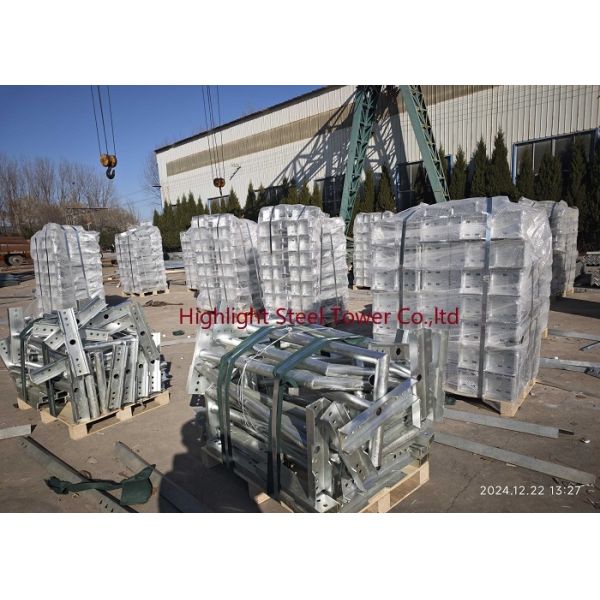

3 Leg 4 Leg Self Supported Angular Antenna Tower Mounting Brackets For Guyed Masts Images
